ISO 8765 Partially Threaded Hex Cap Screws with Metric Fine Threads

ISO 8765 Partially Threaded Hex Cap Screws with Metric Fine Threads

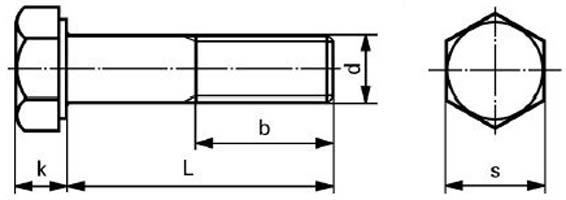

Dimensions of Partially Threaded Hex Cap Screws with Metric Fine Threads

Dimensions s k b1 (l < 125mm) b2 (l < 200mm) b3 (l > 200mm)
M 2 4 1.4 10 - -
M 3 5.5 2 12 - -
M 4 7 2.8 14 - -
M 5 8 3.5 16 22 -
M 6 10 4 18 24 -
M 7 11 4.8 20 26 -
M 8 13 5.3 22 28 -
M 10 16 6.4 26 32 45
M 12 18 7.5 30 36 49
M 14 21 8.8 34 40 53
M 16 24 10 38 44 57
M 18 27 11.5 42 48 61
M 20 30 12.5 46 52 65
M 22 34 14 50 56 69
M 24 36 15 54 60 73
M 27 41 17 60 66 79
M 30 46 18.7 66 72 85
M 33 50 21 72 78 91
M 36 55 22.5 78 84 97
M 39 60 25 84 90 103
M 42 65 26 90 96 109
M 45 70 28 96 102 115
M 48 75 30 102 108 121
M 52 80 33 - 116 129
M 56 85 35 - 124 137
M 64 95 40 - 140 153
