PN 82021 - Slices with a cloth (lock washers)

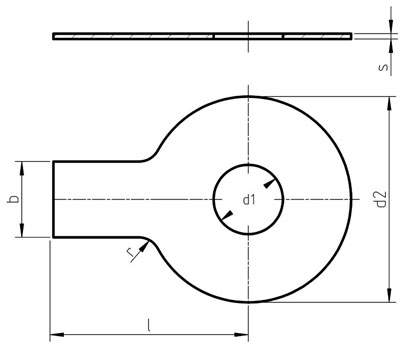

Dimensions for PN 82021 - Slices with a cloth (lock washers)
| d* | d1 H13 | d2 h13 | b h14 | l | s |
|---|---|---|---|---|---|
| M4 | 4.3 | 14 | 5 | 14 | 0.38 |
| M5 | 5.3 | 17 | 6 | 16 | 0.5 |
| M6 | 6.4 | 19 | 7 | 18 | 0.5 |
| M8 | 8.4 | 22 | 8 | 20 | 0.75 |
| M10 | 10.5 | 26 | 10 | 22 | 0.75 |
| M12 | 13.0 | 30 | 12 | 28 | 1 |
| M14 | 15.0 | 33 | 12 | 28 | 1 |
| M16 | 17.0 | 36 | 15 | 32 | 1 |
| M18 | 19.0 | 40 | 18 | 36 | 1 |
| M20 | 21.0 | 42 | 18 | 36 | 1 |
| M22 | 23.0 | 50 | 20 | 42 | 1 |
| M24 | 25.0 | 50 | 20 | 42 | 1 |
| M27 | 28.0 | 58 | 23 | 48 | 1.6 |
| M30 | 31.0 | 63 | 26 | 52 | 1.6 |
| M33 | 34.0 | 68 | 28 | 56 | 1.6 |
| M36 | 37.0 | 75 | 30 | 60 | 1.6 |
| M39 | 40.0 | 82 | 32 | 64 | 1.6 |
