PN 82302 - Hexagon socket Head Cap Screws

Equivalent Standards

PN 82302

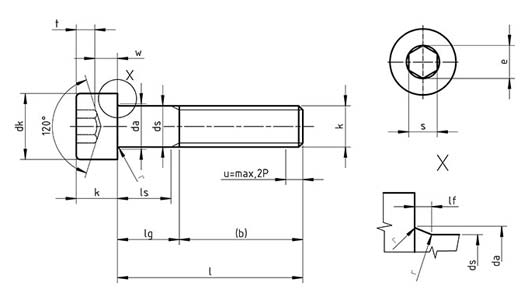

Dimensions for PN 82302 - Hexagon socket Head Cap Screws

Thread d p b dk da ds e h k r s t v dw w
max max grooved head min max max min min max max min min nominal max min min max min min
M1.6 0.35 15 3 3.14 2.86 2 1.60 1.46 1.733 0.34 1.60 1.46 0.1 1.5 1.58 1.52 0.7 0.16 2.72 0.55
M2 0.4 16 3.80 3.98 3.62 2.6 2.00 1.86 1.733 0.51 2.00 1.86 0.1 1.5 1.58 1.52 1 0.2 3.48 0.55
M2.5 0.45 17 4.50 4.68 4.32 3.1 2.50 2.36 2.303 0.51 2.50 2.36 0.1 2 2.08 2.02 1.1 0.25 4.18 0.85
M3 0.5 18 5.50 5.68 5.32 3.6 3.00 2.86 2.873 0.51 3.00 2.86 0.1 2.5 2.58 2.52 1.3 0.3 5.07 1.15
M4 0.7 20 7 7.22 6.78 4.7 4.00 3.82 3.443 0.6 4.00 3.82 0.2 3 3.08 3.02 2 0.4 6.53 1.4
M5 0.8 22 8.50 8.72 8.28 5.7 5.00 4.82 4.583 0.6 5.00 4.82 0.2 4 4.095 4.02 2.5 0.5 8.03 1.9
M6 1 24 10 10.22 9.78 6.8 6.00 5.82 5.723 0.68 6.00 5.7 0.25 5 5.14 5.02 3 0.6 9.38 2.3
M8 1.25 28 13 13.27 12.73 9.2 8.00 7.78 6.863 1.02 8.00 7.64 0.4 6 6.14 6.02 4 0.8 12.33 3.3
M10 1.5 32 16 16.27 15.73 11.2 10.00 9.78 9.149 1.02 10.00 9.64 0.4 8 8.175 8.025 5 1 15.33 4
M12 1.75 36 18 18.27 17.73 13.7 12.00 11.73 11.429 1.45 12.00 11.57 0.6 10 10.175 10.025 6 1.2 17.23 4.8
M14 2 40 21 21.33 20.67 15.7 14.00 13.73 13.716 1.45 14.00 13.57 0.6 12 12.212 12.032 7 1.4 20.17 5.8
M16 2 44 24 24.33 23.67 17.7 16.00 15.73 15.996 1.45 16.00 15.57 0.6 14 14.212 14.032 8 1.6 23.17 6.8
M20 2.5 52 30 30.33 29.67 22.4 20.00 19.67 19.437 2.04 20.00 19.48 0.8 17 17.23 17.05 10 2 28.87 8.6
M24 3 60 36 36.39 35.61 26.4 24.00 23.67 21.734 2.04 24.00 23.48 0.8 19 19.275 19.065 12 2.4 34.81 10.4
M30 3.5 72 45 45.39 44.61 33.4 30.00 29.67 25.154 2.89 30.00 29.48 1 22 22.275 22.065 15.5 3 43.61 13.1
M36 4 84 54 54.46 53.54 39.4 36.00 35.61 30.854 2.89 36.00 35.38 1 27 27.275 27.065 19 3.6 52.54 15.3
M42 4.5 96 63 63.46 62.54 45.6 42.00 41.61 36.571 3.06 42.00 41.38 1.2 32 32.33 32.08 24 4.2 61.34 16.3
M48 5 108 72 72.46 71.54 52.6 48.00 47.61 41.131 3.91 48.00 47.38 1.6 36 36.33 36.08 28 4.8 70.34 17.5
M56 5.5 124 84 84.54 83.46 63 56.00 55.54 46.831 5.95 56.00 55.26 2 41 41.33 41.08 34 5.6 82.26 19
M64 6 140 96 96.54 95.46 71 64.00 6354 52.531 5.95 64.00 63.26 2 46 46.33 46.08 38 6.4 94.26 22
