PN 82314 - Hexagon socket set screws with flat point

Equivalent Standards

PN 82314

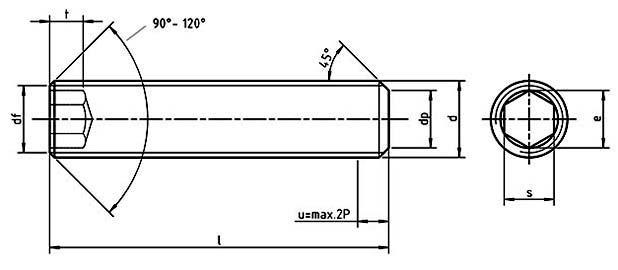

Dimensions for PN 82314 - Hexagon socket set screws with flat point

Thread d p df dp e s t
approx. max min min nominal min max min min
M1.4 0.3   0.7 0.45 0.803 0.7 0.711 0.724 0.6 1.4
M1.6 0.35   0.8 0.55 0.803 0.7 0.711 0.724 0.7 1.5
M1.8 0.35   0.9 0.65 0.803 0.7 0.711 0.724 0.8 1.6
M2 0.4   1 0.75 1.003 0.9 0.889 0.902 0.8 1.7
M2.5 0.45   1.5 1.25 1.427 1.3 1.27 1.295 1.2 2
M3 0.5   2 1.75 1.73 1.5 1.52 1.545 1.2 2
M4 0.7   2.5 2.25 2.3 2 2.02 2.045 1.5 2.5
M5 0.8   3.5 3.2 2.87 2.5 2.52 2.56 2 3
M6 1   4 3.7 3.4 3 3.02 3.08 2 3.5
M8 1.25   5.5 5.2 4.58 4 4.02 4.095 3 5
M10 1.5   7 6.64 5.72 5 5.02 5.095 4 6
M12 1.75   8.5 8.14 6.86 6 6.02 6.095 4.8 8
M14 2   10 9.64 6.86 6 6.02 6.095 5.6 9
M16 2   12 11.57 9.15 8 8.025 8.115 6.4 10
M18 2.5   13 12.57 11.43 10 10.025 10.115 7.2 11
M20 2.5   15 14.57 11.43 10 10.025 10.115 8 12
M22 2.5   17 16.57 13.72 12 12.032 12.142 9 13.5
M24 3   18 17.57 13.72 12 12.032 12.142 10 15
