UNI 1751 A – Spring Lock Washers, Form A

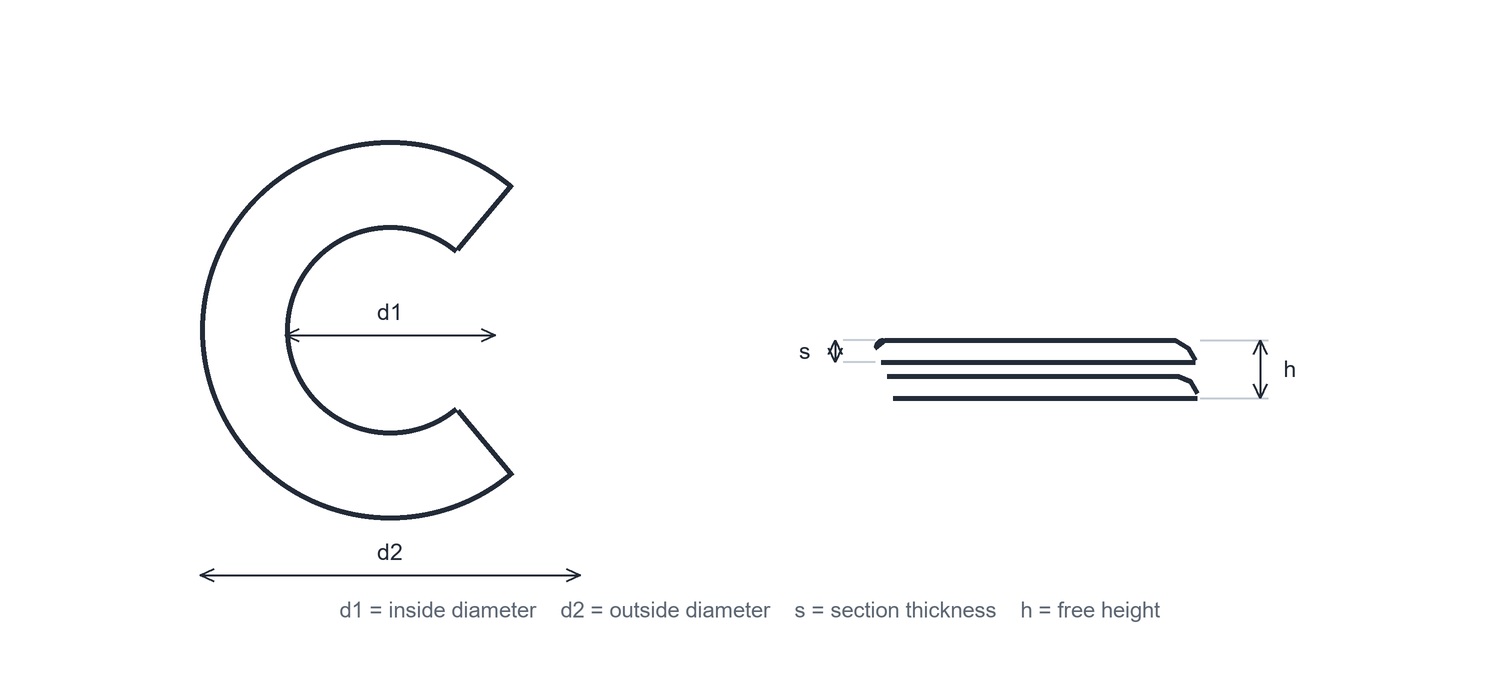

UNI 1751 A is a spring lock washer with rounded section edges. The image shows the ring and side section with the dimensions used in the table.

Dimensioned technical drawing of a split helical spring lock washer, Form A, with inner diameter d1, outer diameter d2, section s and free height h.

Selected dimensional schedule (mm)

For thread d1 d2 s h Approx. mass (kg/1000)
M3 3.2 5.8 0.8 1.6 0.10
M4 4.3 7.3 0.9 1.8 0.17
M5 5.3 8.9 1.2 2.4 0.33
M6 6.4 11.4 1.6 3.2 0.74
M7 7.4 12.4 1.6 3.2 0.80
M8 8.4 14.4 2.0 4.0 1.40
M10 10.5 17.5 2.2 4.4 2.14
M12 13.0 21.0 2.5 5.0 3.24
M14 15.0 24.0 3.0 6.0 5.25
M16 17.0 27.0 3.5 7.0 7.88
M18 19.0 29.0 3.5 7.0 8.50
M20 21.0 33.0 4.0 8.0 12.9
M22 23.0 35.0 4.0 8.0 13.7
M24 25.0 39.0 5.0 10.0 21.3
M27 28.0 42.0 5.0 10.0 24.1
M30 31.0 47.0 6.0 12.0 26.8
M33 34.0 54.0 6.0 12.0 53.0
M36 37.0 57.0 6.0 12.0 55.9
M39 40.0 60.0 6.0 12.0 60.0

Dimensions are in millimetres. The published catalogue identifies this form with rounded section edges. Masses are approximate catalogue values.
