UNI 1751 B – Spring Lock Washers, Form B

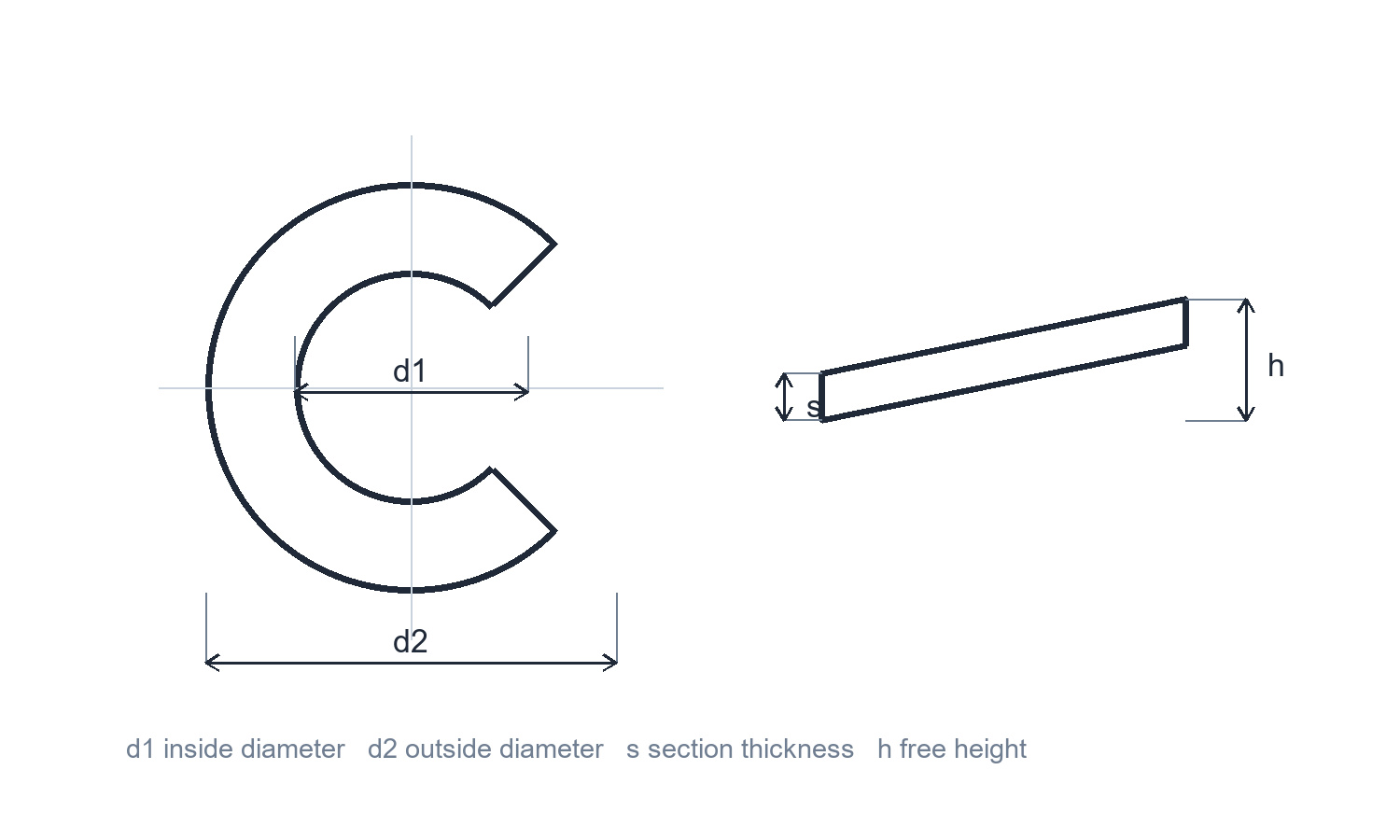

UNI 1751 B is the square-edge form of the split spring lock washer. The drawing shows its open ring and section dimensions.

Dimensioned technical drawing of a split helical spring lock washer, Form B, with inner diameter d1, outer diameter d2, section s and free height h.

Selected dimensional schedule (mm)

For thread d1 d2 s h Approx. mass (kg/1000)
M3 3.1 6.2 0.8 1.6 0.11
M4 4.1 7.6 0.9 1.8 0.18
M5 5.1 9.2 1.2 2.4 0.36
M6 6.1 11.8 1.6 3.2 0.83
M7 7.1 12.8 1.6 3.2 0.93
M8 8.1 14.8 2.0 4.0 1.60
M10 10.2 18.1 2.2 4.4 2.53
M12 12.2 21.1 2.5 5.0 3.82
M14 14.2 24.1 3.0 6.0 6.01
M16 16.2 27.4 3.5 7.0 8.91
M18 18.2 29.4 3.5 7.0 9.73
M20 20.2 33.6 4.0 8.0 15.2
M22 22.2 35.9 4.0 8.0 16.5
M24 24.5 40.0 5.0 10.0 26.2
M26 26.5 43.0 5.0 11.0 27.9
M27 27.5 44.0 5.0 11.0 28.7
M28 28.5 45.0 5.0 11.0 29.5
M30 30.5 49.0 6.0 13.6 44.3

Dimensions are in millimetres. This is a selected commercial schedule for square-edge spring lock washers; verify the governing UNI edition where full tolerances are required.
