UNI 5583 - Hexagon Slotted Castle Nuts

UNI 5583 is cross-listed with DIN 935 for hexagon slotted and castle nuts. The drawing marks the thread, across-flats and across-corners dimensions, nut height, crown height and slot width.

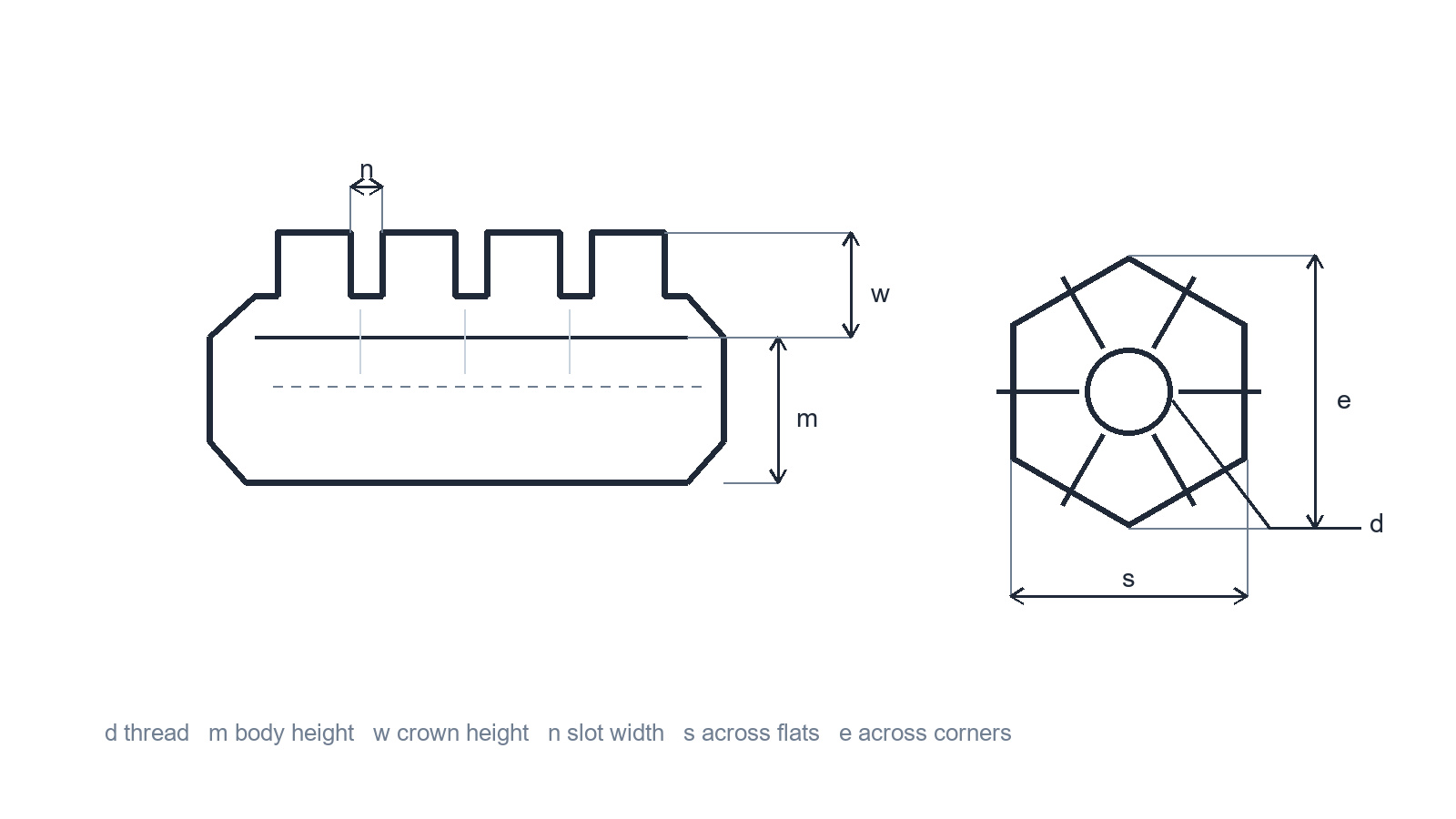

Dimensioned technical line drawing of a hexagon castle nut with slotted crown, showing thread diameter d, across-flats s, across-corners e, body height m, crown height w and slot width n.

Selected coarse-thread dimensions (mm)

Thread Pitch P Across corners e min. Body height m max. Crown height w max. Slot width n min. Across flats s max. Across flats s min.
M6 1.0 11.05 7.5 5 2.00 10 9.78
M8 1.25 14.38 9.5 6.5 2.50 13 12.73
M10 1.5 17.77 12 8 2.80 16 15.73
M12 1.75 20.03 15 10 3.50 18 17.73
M14 2.0 23.35 16 11 3.50 21 20.67
M16 2.0 26.75 19 13 4.50 24 23.67
M18 2.5 29.56 21 15 4.50 27 26.16
M20 2.5 32.95 22 16 4.50 30 29.16
M22 2.5 37.29 26 18 5.50 34 33.00
M24 3.0 39.55 27 19 5.50 36 35.00
M27 3.0 45.20 30 22 5.50 41 40.00
M30 3.5 50.85 33 24 7.00 46 45.00

This selected table follows the published DIN 935-1:2013 dimensional reference cross-listed for UNI 5583. It does not replace checking the governing UNI edition or full specification for production.
