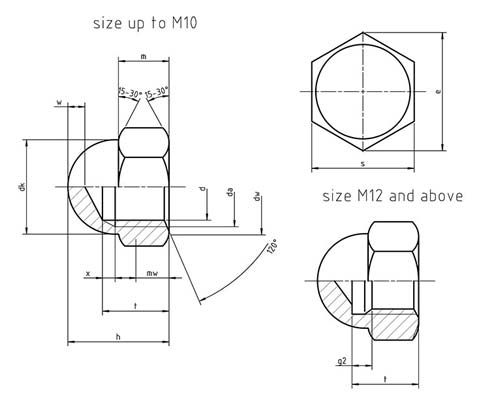

Dimensions for UNI 5721 Hexagon domed cap nuts

thread			p	da		dk	dw	e min		x max			g2 max			h			m		Mw	r	s			t		w	weight kg/1000pcs
Series 1	Series 2	Series 3	Series 1	min	max	max	min	Product Grade A	Product Grade B	Series 1	Series 2	Series 3	Series 1	Series 2	Series 3	max	grade A	grade B	max	min	min.	approx	max	min Grade A	min Grade B	t min	t max	w min
M4	-	-	0.7	4	4.6	6.5	5.9	7.66	7.5	1.4	-	-	-	-	-	8	7.64	7.42	3.2	2.9	2.32	3.25	7	6.78	6.64	5.26	5.74	2	-
M5	-	-	0.8	5	5.75	7.5	6.9	8.79	8.63	1.6	-	-	-	-	-	10	9.64	9.42	4	3.7	2.96	3.75	8	7.78	7.64	7.21	7.79	2	-
M6	-	-	1	6	6.75	9.5	8.9	11.05	10.89	2	-	-	-	-	-	12	11.57	11.3	5	4.7	3.76	4.75	10	9.78	9.64	7.71	8.29	2	4.66
M8	M8x1	-	1.25	8	8.75	12.5	11.6	14.38	14.2	2.5	2	-	-	-	-	15	14.57	14.3	6.5	6.14	4.91	6.25	13	12.73	12.57	10.65	11.35	2	11
M10	M10x1	M10x1.25	1.5	10	10.8	15	14.6	17.77	17.59	3	2	2.5	-	-	-	18	17.57	17.3	88	7.64	6.11	7.5	16	15.73	15.57	12.65	13.35	2	20.1
M12	M12x1.5	M12x1.25	1.75	12	13	17	16.6	20.03	19.85	-	-	-	6.4	5.6	4.9	22	21.48	21.16	10	9.64	7.71	8.5	18	17.73	17.57	15.65	16.35	3	28.3
M14	M14x1.5	-	2	14	15.1	20	19.6	23.35	22.78	-	-	-	7.3	5.6	-	25	24.48	24.16	11	10.3	8.24	10	21	20.67	20.16	17.65	18.35	4	-
M16	M16x1.5	-	2	16	17.3	23	22.5	26.75	26.17	-	-	-	7.3	5.6	-	28	27.48	27.16	13	12.3	9.84	11.5	24	23.67	23.16	20.58	21.42	4	54.3
M18	M18x1.5	M18x2	2.5	18	19.5	26	24.9	30.14	29.56	-	-	-	9.3	5.6	7.3	32	32.38	31	15	14.3	11.44	13	27	26.67	26.16	24.58	25.42	5	95
M20	M20x2	M20x1.5	2.5	20	21.6	28	27.7	33.53	32.95	-	-	-	9.3	7.3	5.6	34	33.38	33	16	14.9	11.92	14	30	29.67	29.16	25.58	26.42	5	104
M22	M22x1.5	M22x2	2.5	22	23.7	33	31.4	37.72	37.29	-	-	-	9.3	5.6	7.3	39	38.38	38	18	16.9	13.52	16.5	34	33.38	33	28.58	29.42	5	-
M24	M24x2	-	3	24	25.9	34	33.3	39.98	39.55	-	-	-	10.7	7.3	-	42	41.38	41	19	17.7	14.16	17	36	35.38	35	30.5	31.5	6	216
