UNI 6547 – Metric Threaded Rods

UNI 6547 is used for metric threaded rods. This drawing identifies nominal thread diameter, pitch and rod length.

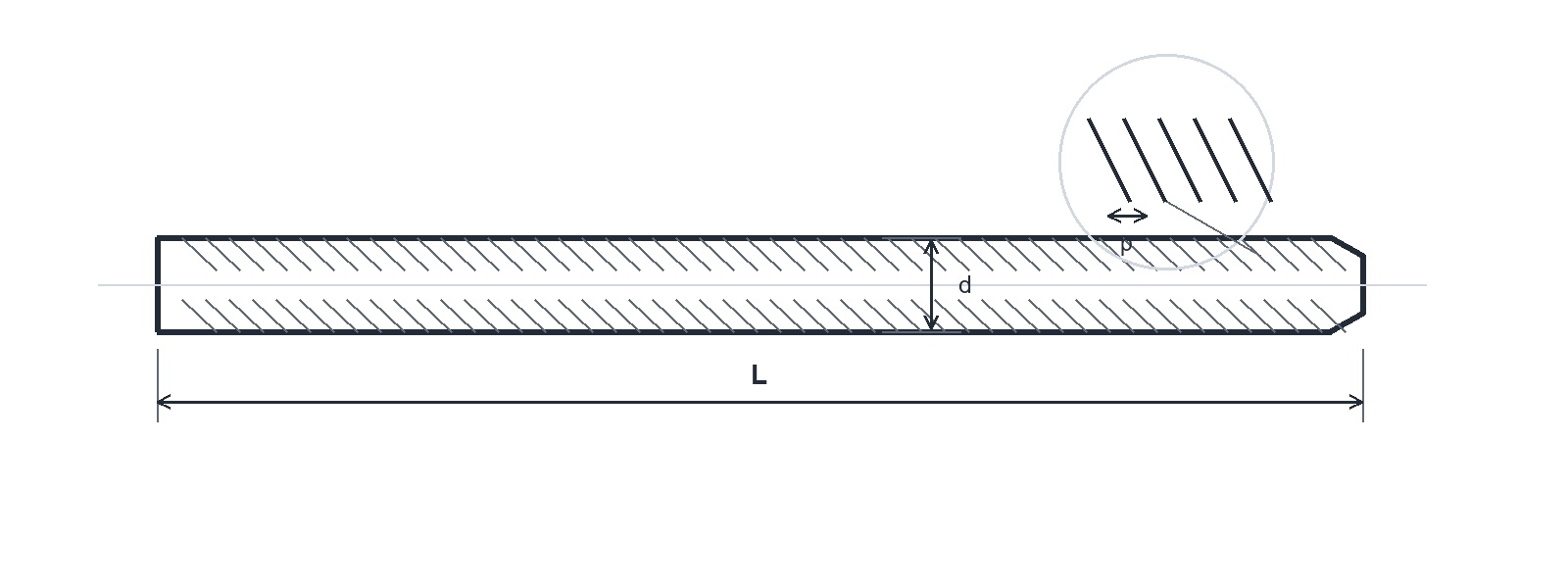

Technical line drawing of a fully threaded rod showing nominal diameter d, overall length L and pitch p detail.

Coarse-thread reference schedule

Thread Coarse pitch P (mm) Approx. mass (kg/1000 pcs)
M3 0.5 44
M4 0.7 78
M5 0.8 124
M6 1.0 177
M8 1.25 310
M10 1.5 491
M12 1.75 712
M14 2.0 975
M16 2.0 1310
M18 2.5 1627
M20 2.5 2052
M22 2.5 2526
M24 3.0 2956
M27 3.0 3821
M30 3.5 4883
M33 3.5 5758
M36 4.0 6804
M39 4.0 8085
M42 4.5 9322
M45 4.5 11000
M48 5.0 12400
M52 5.0 14700

Mass figures are approximate catalogue values for 1,000 rods; actual mass depends on supplied length and material. The cited supplier lists 2 m and 3 m stock lengths.
