UNI 6735 – Striking Open-End Wrenches

UNI 6735 concerns striking open-end wrenches (DIN 133 type). The dimensioned drawing shows jaw opening S, head width W, head thickness a and overall length L.

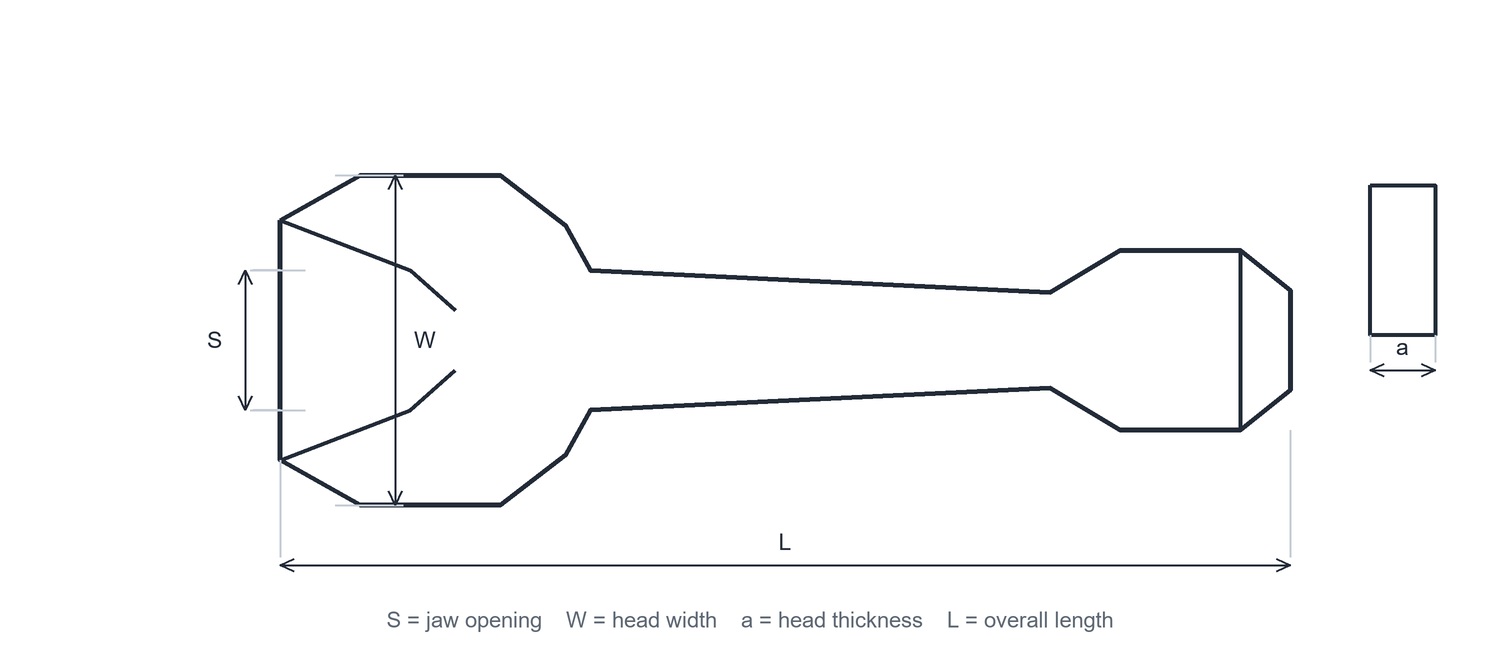

Dimensioned line drawing of a striking open-end wrench showing jaw opening S, head width W, head thickness a and overall length L.

Selected product dimensions (mm)

Nominal opening S (mm) Head width W (mm) Head thickness a (mm) Overall length L (mm)
24 40 14 180
27 56 16 180
30 62 17 190
32 70 17 200
36 76 17.5 215
41 86 18.5 235
46 98 20 255
50 105 21 275
55 116 23 300

The page describes the wrench standard and lists selected supplier dimensions. Confirm tooling requirements against the governing standard edition.
