UNI 7285 Taper pins with internal thread

Equivalent Standards

UNI 7285 Tapper pins

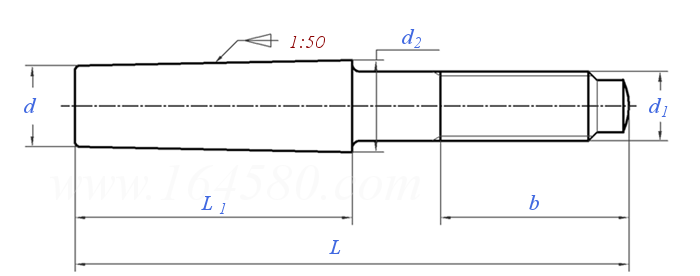

Dimensions for UNI 7285 Taper pins with internal thread

Nominal diameter
D		 5 6 8 10 12 16 20 25 30 40 50
D Maximum value 5 6 8 10 12 16 20 25 30 40 50
min 4.982 5.982 7.978 9.978 11.973 15.973 19.967 24.967 29.967 39.961 49.961
B 14 18 22 24 27 35 35 40 46 58 70
D2 = 5.5 6.6 8.8 10.9 13.1 17.4 21.7 27 32.2 42.6 53
D1 6g M5 M6 M8 M10 M12 M16 M16 M20 M24 M30 M36
L2 25 30 40 45 55 72 85 100 110 130 150
