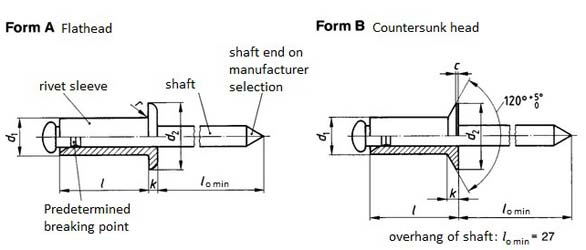

Dimensions for UNI 9200 Break mandrel blind rivets

d1	d2	length clip	l
3.0	6.5	1 - 3	6
3.0	6.5	3 - 5	8
3.0	6.5	5 - 7	10
3.0	6.5	7 - 9	12
3.0	6.5	8 - 12	16
3.2	6.5	1 - 3	6
3.2	6.5	3 - 5	8
3.2	6.5	5 - 7	10
3.2	6.5	7 - 9	12
3.2	6.5	9 - 12	16
4.0	8.0	1 - 2.5	6
4.0	8.0	2.5 - 4.5	8
4.0	8.0	4.5 - 6.5	10
4.0	8.0	6.5 - 8.5	12
4.0	8.0	8.5 - 12	16
4.0	8.0	11.5 - 14	18
4.0	8.0	12 - 16	20
4.8	9.5	2 - 4	8
4.8	9.5	4 - 6	10
4.8	9.5	6 - 8	12
4.8	9.5	8 - 11	16
4.8	9.5	10 - 13	18
4.8	9.5	11 - 15	20
5.0	9.5	2 - 4	8
5.0	9.5	4 - 6	10
5.0	9.5	6 - 8	12
5.0	9.5	8 - 11	16
5.0	9.5	10 - 13	18
5.0	9.5	11 - 15	20
5.0	9.5	15 - 20	25
