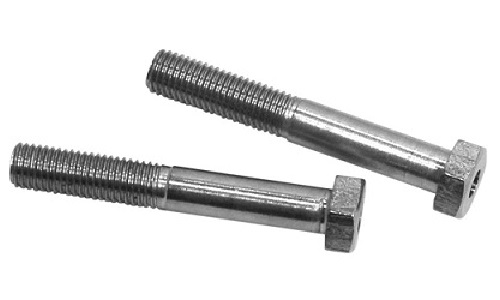

This page covers Hollow Hex Bolts. Use the product information and dimension guidance below to specify the required configuration; confirm final dimensions against the selected standard or approved drawing.
| Specification | Details |
|---|---|
| Product | Hollow Hex Bolts |
| Reference / designation | Product category |
| Product form | Bolts |
| Dimension guidance | Thread diameter and pitch, overall length, threaded length, head dimensions and shank or end details. |
| Details to specify | Product size, material or grade, condition, finish, quantity and drawing requirements. |
| Forming | Hot & Cold Forged |
| Metric Size | M10 to M100 |
| Imperial Size | 3/8 to 8" |
| Threads | UNC, UNF, ISO, BSW & ACME. |
| Standards | ASME,BS,DIN,ISO,UNI,DIN-EN |
| Sub types | 1. Fully Threaded Hollow Hex Bolts 2. Partial Threaded Hollow Hex Bolts 3. Metric Hollow Hex Bolts 4. Imperial Hollow Hex Bolts |
| ASME B18.2.1 | 3/8 inch to 3 inch |
| BS 1769 | ½ inch to 2 inch |
| ASME B18.2.3.6M | M12 to M36 |
| ASME B18.2.3.7M | M16 to M36 |
| DIN 6914 | M12 to M36 |
| ISO 7412 | M12 to M36 |
| UNI 5712 | M12 to M36 |
| DIN-EN 14399-4 | M12 to M36 |
